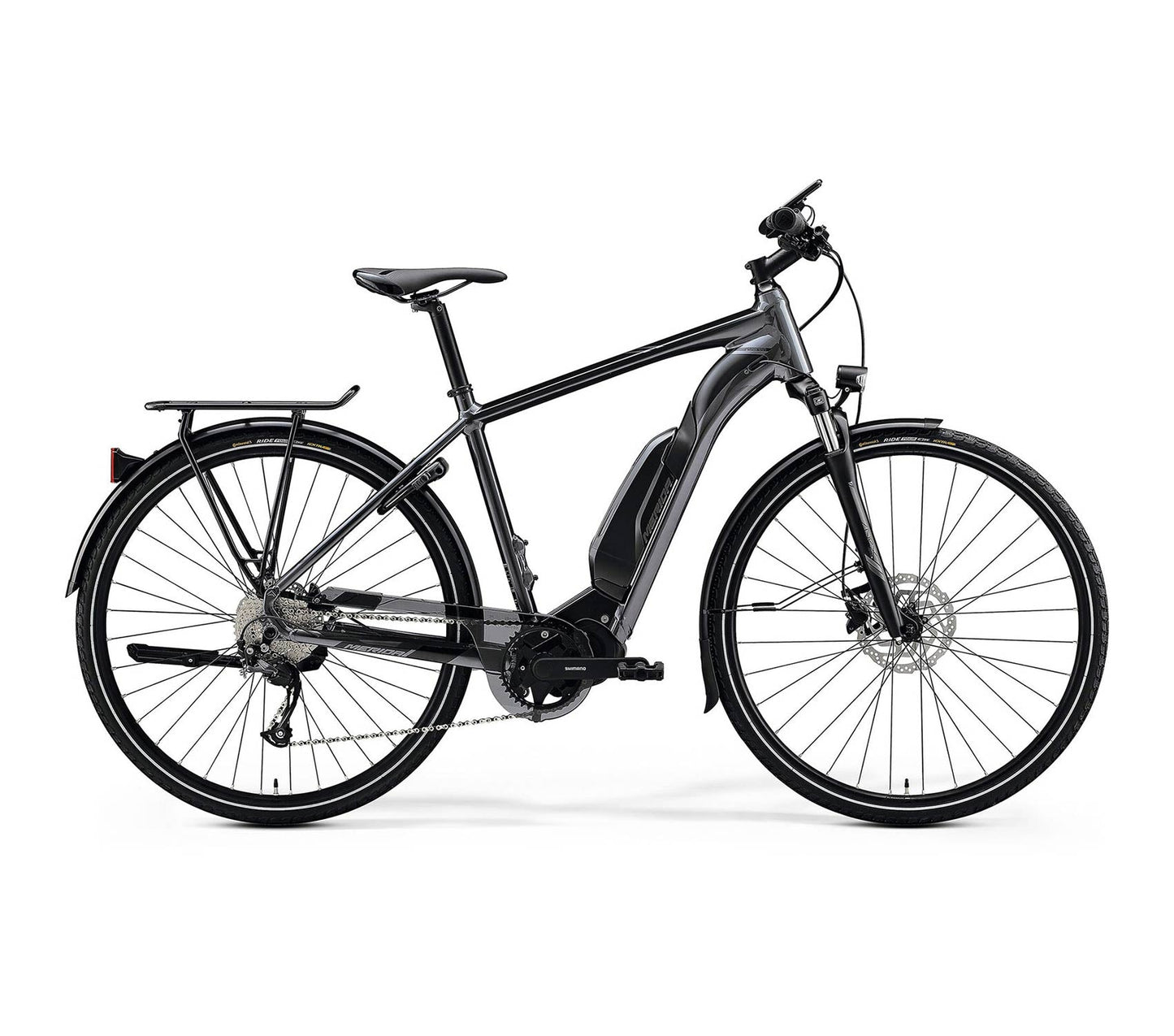

Specifications
FEATURES
- Smooth, refined Shimano E5000 drive unit
- Lightweight frame with internally mounted 504 Wh battery
- Smooth 9-speed Shimano drivetrain
- Fully equipped with guards, lights, lock, rack and kickstand
- Fast-rolling 700c wheels and comfortable, grippy 50 mm tyres
- Low step-through frame option available
Brakes
Shimano MT200
2 piston
2 piston
Frame
eSPRESSO LITE
material: aluminium 700C wheelsize 142x12mm axle standard external max. 504 Wh
material: aluminium 700C wheelsize 142x12mm axle standard external max. 504 Wh
Frame Size
XS, S, M, L, XL
eSPRESSO L XS(43L)-S(47L)-M(51L)-L(55L)
eSPRESSO L XS(43L)-S(47L)-M(51L)-L(55L)
Fork
SR Suntour NEX-PM-DS
Coil 63mm suspension travel 700x48C max wheelsize
Coil 63mm suspension travel 700x48C max wheelsize
Color
DARK SILVER (BLACK)
Drive Unit
Shimano E5000
40Nm
40Nm
Display
Shimano SC-E5000A
Battery Lock
Abus Key
Battery
Shimano E8010
504Wh
504Wh
Derailleur (R)
Shimano Altus M2000
SGS
SGS
Rotors
Shimano RT10
180 mm 160 mm
180 mm 160 mm
Shifter Rear
Shimano Altus
Brake Front
Shimano MT200
2 piston
2 piston
Brake Rear
Shimano MT200
2 piston
2 piston
Chainwheel
Shimano CRE50
38 teeth
38 teeth
Chain
KMC e9S
Crank
Shimano FC-E5010
170mm
170mm
Hub Front
Shimano TX505
100x9mm width front hub 32 spoke holes Centerlock
100x9mm width front hub 32 spoke holes Centerlock
Hub Rear
Shimano MT400
142x12mm width rear hub 36 spoke holes Centerlock
142x12mm width rear hub 36 spoke holes Centerlock
Rim
MERIDA COMP TK
20mm inner width material: aluminium
20mm inner width material: aluminium
Freewheel
Shimano HG400
11-36 teeth 9 speed
11-36 teeth 9 speed
Tyre Front
Continental Ride Tour
622x42" reflective stripe
622x42" reflective stripe
Tyre Rear
Continental Ride Tour
622x42" reflective stripe
622x42" reflective stripe
Spokes
Black stainless
Handlebar Stem
MERIDA EXPERT CC
material: aluminium 31.8mm diameter 17⌀ stem angle 80 mm-XS/S, 90 mm-M, 100 mm-L, 110 mm-XL
material: aluminium 31.8mm diameter 17⌀ stem angle 80 mm-XS/S, 90 mm-M, 100 mm-L, 110 mm-XL
Handlebar
MERIDA EXPERT TK
material: aluminium 660mm width 15mm rise
material: aluminium 660mm width 15mm rise
Headset
MERIDA 2346
Seat Post
MERIDA EXPERT
material: aluminium 30.9mm diameter 15mm setback
material: aluminium 30.9mm diameter 15mm setback
Saddle
MERIDA EXPERT TK
V-mount
V-mount
Fender
Sunnywheel SW-FA 513
Carrier
MERIDA MIK
Spring clip Herrmans rear light
Spring clip Herrmans rear light
Kickstand
Massload CL-KA98
Light Front
Herrmans H-Black MR4 E
STVZO
STVZO
Light Rear
Herrmans H-Cargo
STVZO integrated in MERIDA MIK carrier
STVZO integrated in MERIDA MIK carrier
Max. Weight
150 kg
GEOMETRY
Frame Size | XS | S | M | L | XL |
---|---|---|---|---|---|
Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
ST seat tube [mm] | 430 | 470 | 510 | 550 | 590 |
TT top tube [mm] | 565 | 580 | 590 | 610 | 630 |
CS chain stay length [mm] | 475 | 475 | 475 | 475 | 475 |
HTA head tube angle [°] | 70.5 | 71 | 71 | 71.5 | 71.5 |
STA seat tube angle [°] | 74 | 73.5 | 73.5 | 73 | 73 |
BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 |
HT head tube [mm] | 130 | 140 | 155 | 175 | 205 |
FL fork length [mm] | 477 | 477 | 477 | 477 | 477 |
R reach [mm] | 385 | 391 | 397 | 404 | 415 |
S stack [mm] | 627 | 638 | 653 | 674 | 702 |
WB wheel base [mm] | 1101 | 1105 | 1116 | 1124 | 1145 |
SH stand over height [mm] | 723 | 757 | 792 | 827 | 864 |
Rider Height: Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend calling our nearest store to discuss your optimal size.
