Specifications

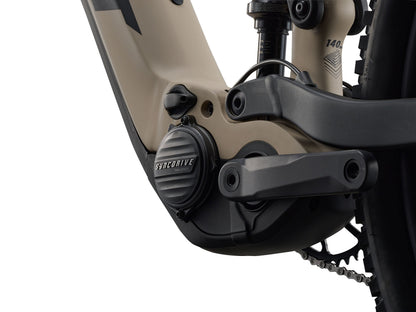

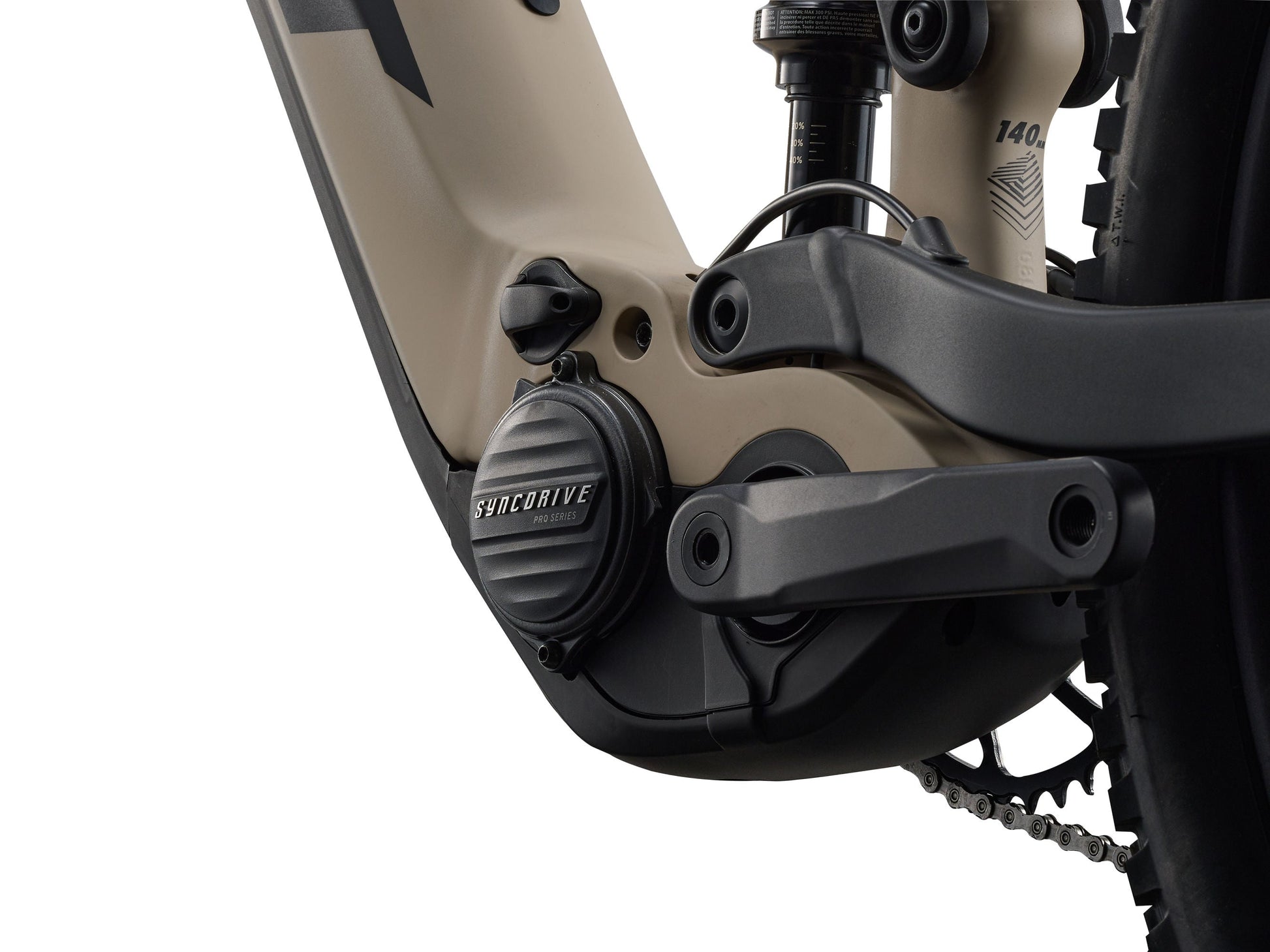

Motor
Giant SyncDrive Pro3X, 36v, 100Nm, 800W peak power, PedalPlus 6-Sensor technology
Controller
Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels

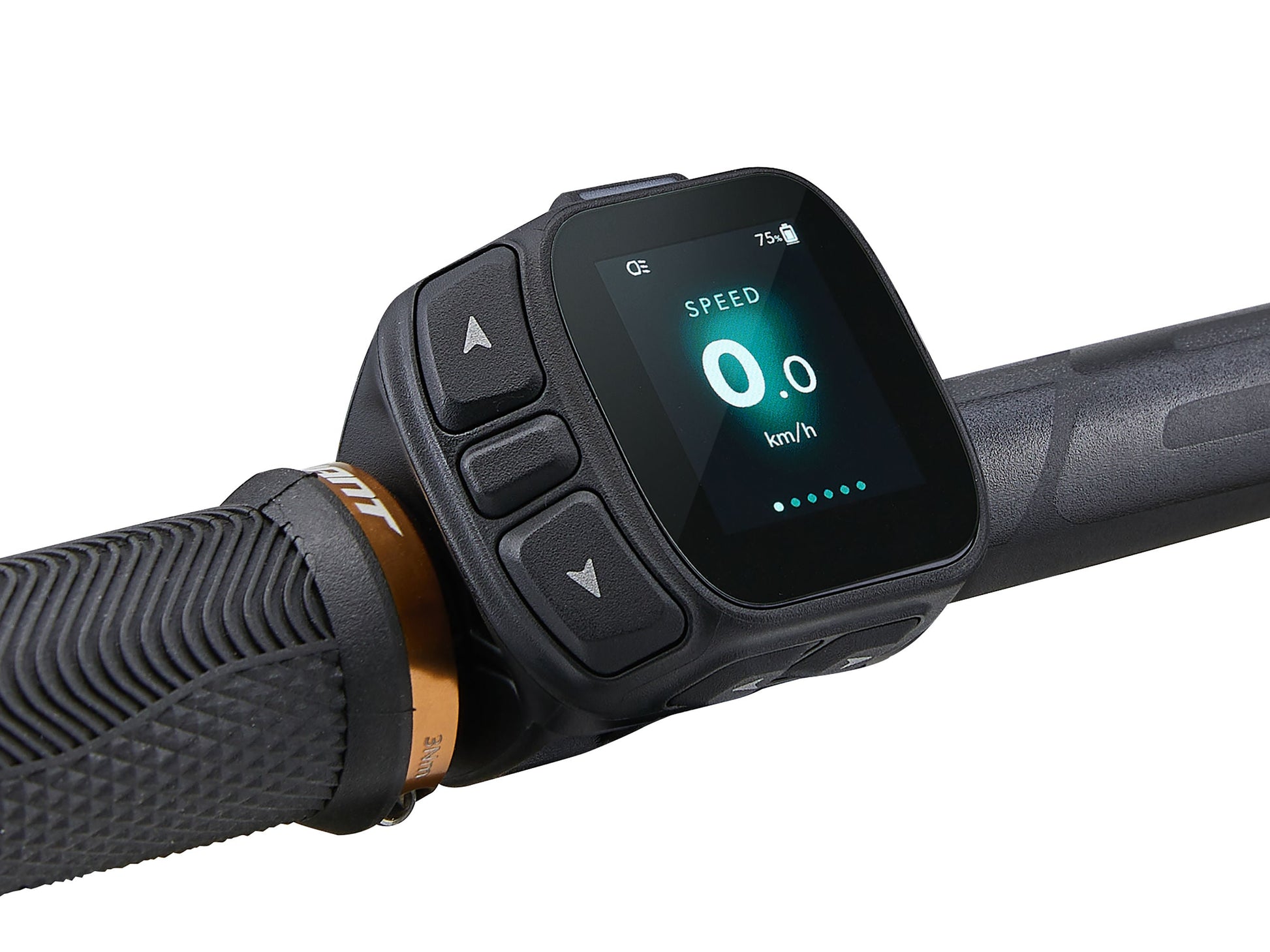

Display
Giant RideControl Dash 2, full colour LCD display
Battery
EnergyPak Smart 800Wh, EnergyPak Plus 200/240Wh range extender compatible
Charger
Giant EnergyPak 4A smart charger
Maximum assisted speed
Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
Sizes
S, M, L, XL
Colours
Almond/Black
Frame
ALUXX SL-grade aluminium, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDH, KSA40 compatible

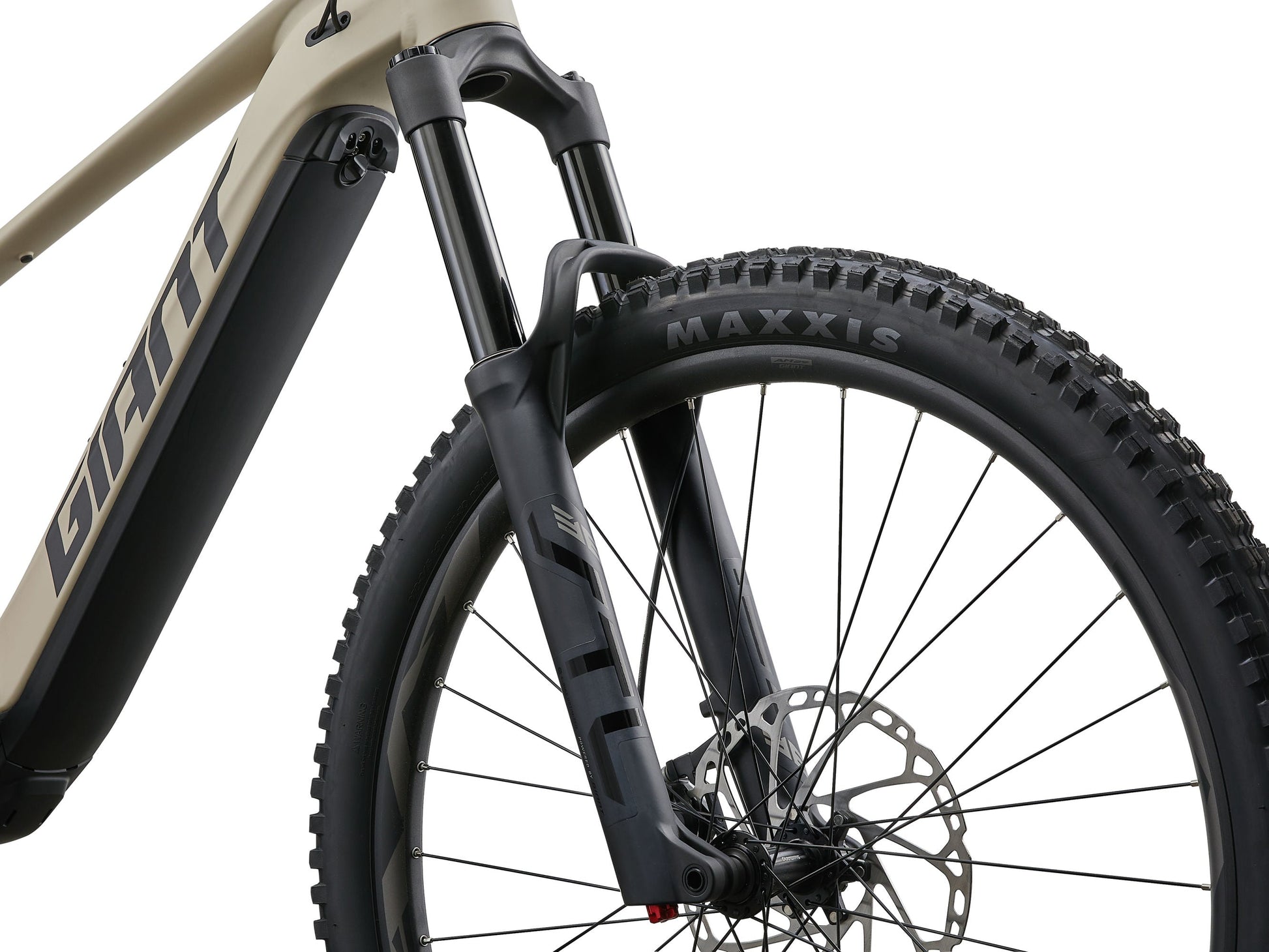

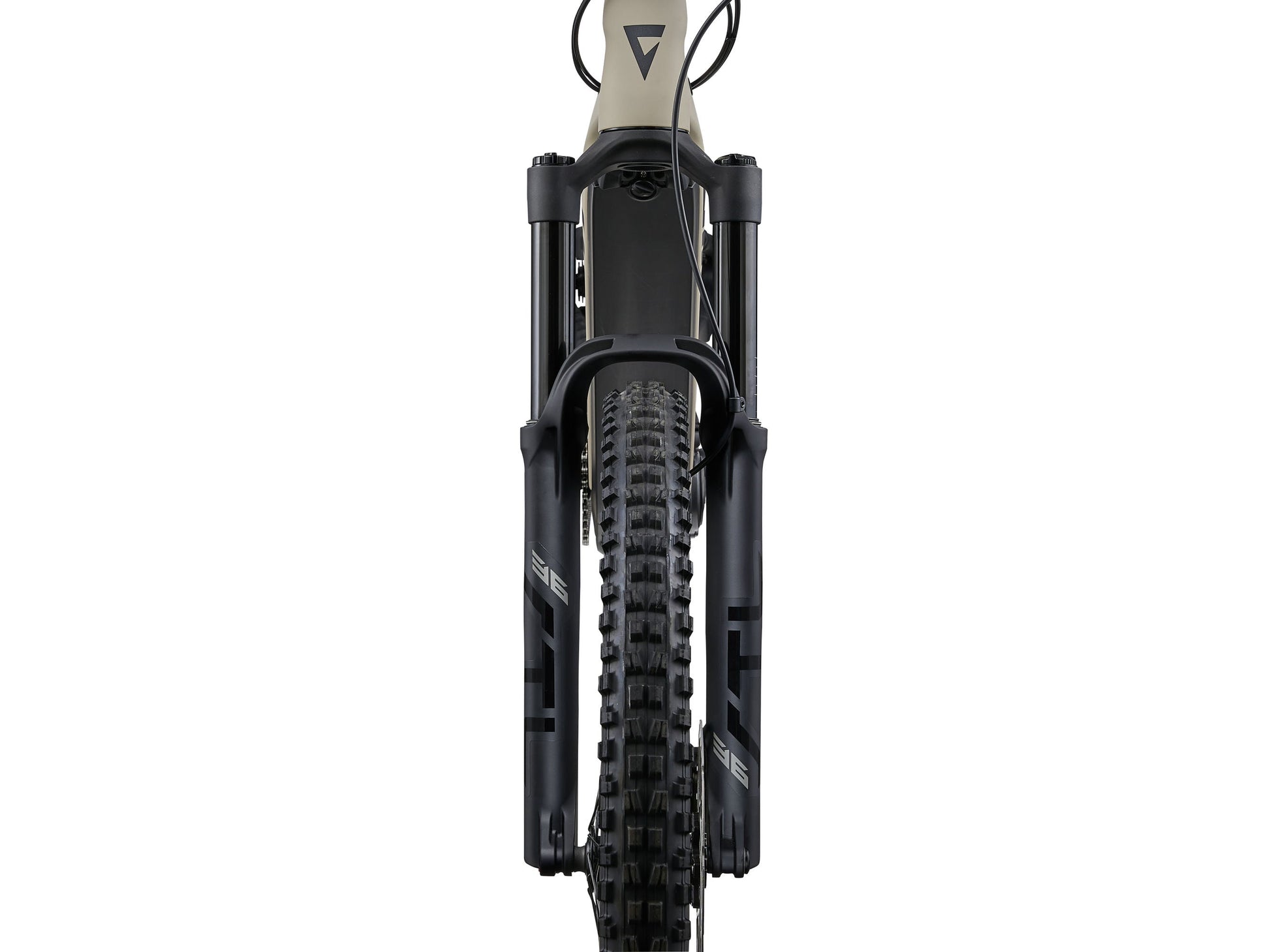

Fork
Giant STL 36 Air, 150mm travel, 5-position compression adjust, e-bike optimised, 110x15mm Boost axle, full fender compatible
Shock
Giant Crest FloTrac, 3-position lever, e-bike optimised
Handlebar
Giant Contact TR35, 20mm Rise
Grips
Giant Tactal Pro single lock-on
Stem
Giant Contact SL 35mm S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost
Giant Contact Switch AT travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle
Giant Contact Ergo Trail
Pedals
Platform
Shifters
Shimano CUES, SL-6000, 1x10
Rear Derailleur
Shimano Cues U6000, 10-speed, Shadow+
Brakes
Shimano BR-M420, hydraulic disc, 4-piston, 220mm [F] 203mm [R]
Brake Levers
Shimano Deore, BL-M401
Cassette
Shimano Cues LinkGlide LG-30010, 10-speed, 11-48T
Chain
Shimano Cues LinkGlideCN-LG500
Crankset
Forged aluminium crank arms Steel direct mount, 36T chain ring S:165mm, M: 165mm, L:165mm, XL:165mm
Bottom Bracket
N/A
Rims
Giant AM Tubeless ready Alloy 29" Tubeless ready
Hubs
Shimano TC500 Boost, Center-Lock, 15x110mm [F] 12x148mm [R], 32H
Spokes
Stainless
Tyres
[F] Maxxis Minion DHF 29.x2.5 WT, TLR, EXO, tubeless, [R] Maxxis Dissector 29x2.4 WT, TLR, EXO, tubeless
Lock
Torx 25 Battery Lock with built-in Torque limiter
Fender/Chainguard
MRP 1x HD guide, CS e-Mount, 32~38T Adjustable
Max Chainring Size
Direct-mount steel 36T (maximum: 38T)
