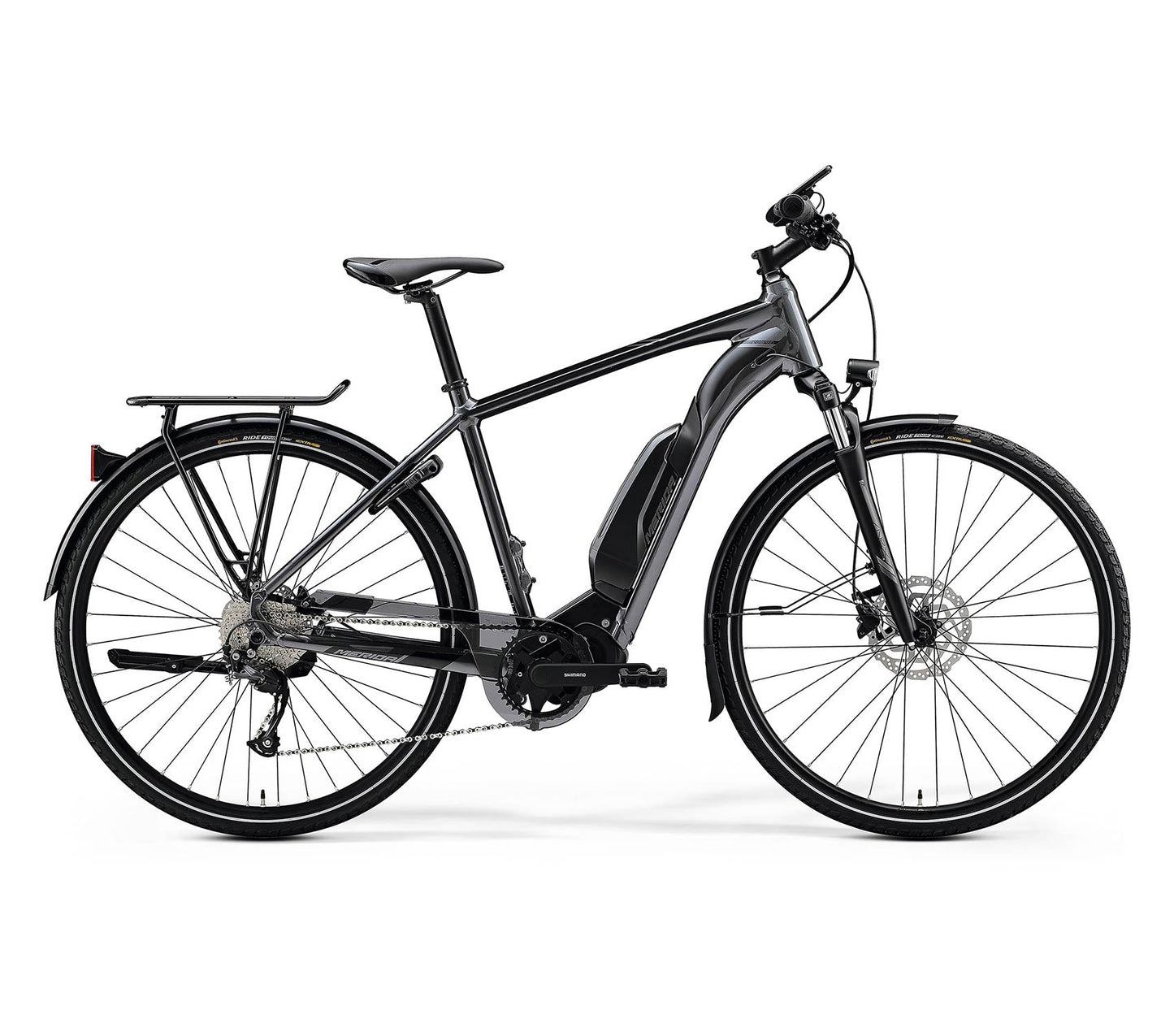

Merida eSPRESSO 300 SE EQ 504WH E-Bike (Dark Silver / Black)

Merida eSPRESSO 300 SE EQ 504WH E-Bike (Dark Silver / Black)

A quality frame with semi-integrated battery is paired to a smooth Shimano drive unit to deliver a city e-bike that gives you all the function you need without the high price tag.

You don't need to spend a fortune to get a reliable city e-bike, something our eSPRESSO 300 EQ easily proves. With a strong and smooth Shimano E5000 drive unit paired to a high-quality aluminium frame with semi-integrated 504 Wh battery, it delivers reliable performance whether you're on the way to work, returning from the shops or just checking out new parts of town. Thanks to equipment such as mudguards, lights, kickstand, lock and rack as standard, plus quality brakes, drivetrain and suspension, it's ready to go from the moment you leave the shop.The eSPRESSO range is the perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop. Choose between frames with internally mounted batteries of either 750 Wh, 630 Wh or 504 Wh capacity or a more economical, 504 Wh semi-integrated design. All use a range of powerful Shimano STEPS drive units, with the option of the sporty EP8 motor on some models. Low step-through frame options on all models help ease mounting and dismounting. Suspension forks offer improved control, while powerful hydraulic disc brakes give reliable and controllable stopping power in all weather conditions. The 700c wheels have wide 50 mm tyres for extra grip and comfort, plus reflective sidewalls strips improve rider safety in low light. Internally routed cables give a sleek look, while a 150 kg maximum system weight means plenty of carrying capacity.


Bike Size

Low stock

Regular price $3,899.00 AUD
Regular price Sale price $3,899.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Click & Collect In-store Please note we do not ship bikes. Bike purchases must be click and collect or in-store only.
View full details

Specifications

FEATURES

  • Smooth, refined Shimano E5000 drive unit
  • Lightweight frame with internally mounted 504 Wh battery
  • Smooth 9-speed Shimano drivetrain
  • Fully equipped with guards, lights, lock, rack and kickstand
  • Fast-rolling 700c wheels and comfortable, grippy 50 mm tyres
  • Low step-through frame option available


Brakes
Shimano MT200
2 piston
Frame
eSPRESSO LITE
material: aluminium 700C wheelsize 142x12mm axle standard external max. 504 Wh
Frame Size
XS, S, M, L, XL
eSPRESSO L XS(43L)-S(47L)-M(51L)-L(55L)
Fork
SR Suntour NEX-PM-DS
Coil 63mm suspension travel 700x48C max wheelsize
Color
DARK SILVER (BLACK)
Drive Unit
Shimano E5000
40Nm
Display
Shimano SC-E5000A
Battery Lock
Abus Key
Battery
Shimano E8010
504Wh
Derailleur (R)
Shimano Altus M2000
SGS
Rotors
Shimano RT10
180 mm 160 mm
Shifter Rear
Shimano Altus
Brake Front
Shimano MT200
2 piston
Brake Rear
Shimano MT200
2 piston
Chainwheel
Shimano CRE50
38 teeth
Chain
KMC e9S
Crank
Shimano FC-E5010
170mm
Hub Front
Shimano TX505
100x9mm width front hub 32 spoke holes Centerlock
Hub Rear
Shimano MT400
142x12mm width rear hub 36 spoke holes Centerlock
Rim
MERIDA COMP TK
20mm inner width material: aluminium
Freewheel
Shimano HG400
11-36 teeth 9 speed
Tyre Front
Continental Ride Tour
622x42" reflective stripe
Tyre Rear
Continental Ride Tour
622x42" reflective stripe
Spokes
Black stainless
Handlebar Stem
MERIDA EXPERT CC
material: aluminium 31.8mm diameter 17⌀ stem angle 80 mm-XS/S, 90 mm-M, 100 mm-L, 110 mm-XL
Handlebar
MERIDA EXPERT TK
material: aluminium 660mm width 15mm rise
Headset
MERIDA 2346
Seat Post
MERIDA EXPERT
material: aluminium 30.9mm diameter 15mm setback
Saddle
MERIDA EXPERT TK
V-mount
Fender
Sunnywheel SW-FA 513
Carrier
MERIDA MIK
Spring clip Herrmans rear light
Kickstand
Massload CL-KA98
Light Front
Herrmans H-Black MR4 E
STVZO
Light Rear
Herrmans H-Cargo
STVZO integrated in MERIDA MIK carrier
Max. Weight
150 kg

GEOMETRY

Frame SizeXSSMLXL
Tyre Sizes28"28"28"28"28"
ST seat tube [mm]430470510550590
TT top tube [mm]565580590610630
CS chain stay length [mm]475475475475475
HTA head tube angle [°]70.5717171.571.5
STA seat tube angle [°]7473.573.57373
BD bottom bracket drop [mm]7070707070
HT head tube [mm]130140155175205
FL fork length [mm]477477477477477
R reach [mm]385391397404415
S stack [mm]627638653674702
WB wheel base [mm]11011105111611241145
SH stand over height [mm]723757792827864

Rider Height: Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend calling our nearest store to discuss your optimal size.
