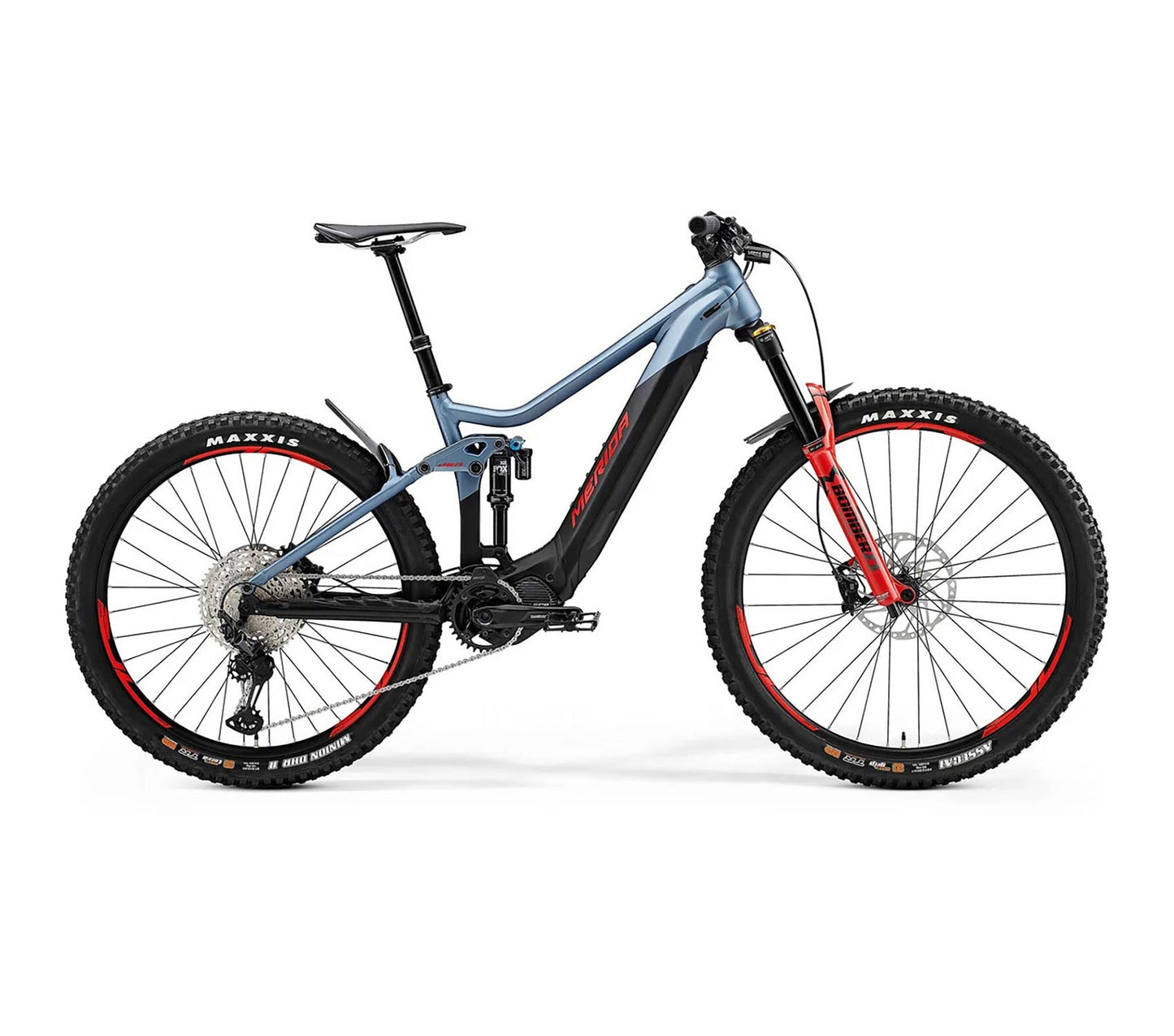

Merida eONE-SIXTY 700 E-MTB Matt Steel Blue/Black (Red)

*Specifications listed may vary slightly from those pictured.

Ride further and push harder with an eMTB that can take on the toughest tracks thanks to a high-value all aluminium frame that delivers sublime handling and all the power of Shimano’s EP8 drive unit.

Riding further and pushing harder is what the eONE-SIXTY 700 is all about, with a high-value, high-performance all-aluminium frame that houses the refined yet powerful EP8 drive unit and integrated 630 Wh battery. Add in our proven geometry and tried and tested suspension and you’ve got a machine that’ll iron out the roughest trails, uphill or down, meaning you can keep going when lesser machines falter.

"The eONE-SIXTY has seamlessly followed in the footsteps of the 'original' eONE-SIXTY in becoming the most decorated, tested and awarded bike in MERIDA's history. This highly anticipated bike managed to collect a vast amount of amazing test results and wins, as well as a few more industry awards to its tally. E-Mountainbike gave it the 'BEST IN TEST' approval in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. For 2022, our all-aluminium e-enduro bike will be equipped with the proven EP8 motor from Shimano as well as with the range extending 630 Wh or 750 Wh (model specific) internal battery. A perfectly tuned MTB geometry, paired with a tough all-aluminium frame, seamlessly integrated battery and a 29er/27.5"" wheel combo that delivers poise and confidence on the toughest trails, the eONE-SIXTY is ready for anything you can throw at it."

Bike Size XS

Low stock

$8,399.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

View full details

Specifications

FEATURES

Tough all-aluminium chassis with integrated 630 Wh battery
Powerful Shimano EP8 drive unit
Mixed wheel size setup with 160/150 mm travel split
High-quality Shimano brakes and wide-range drivetrain
Marzocchi fork and Fox rear suspension
Multiple award and test winning frame geometry

SPECIFICATIONS

Brakes

Shimano SLX
4 piston

Frame

eONE-SIXTY LITE III
material: aluminium 150mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube

Frame Size

XS, S, M, L, XL

Fork

Marzocchi Z1 Ebike+
Air 160mm suspension travel Tapered 51mm fork offset 29x2.6" max wheelsize

Color

DARK STRAWBERRY (BLACK)

Shock

FOX Float DPX2 Performance
platform

Drive Unit

Shimano EP8
85Nm

Display

Shimano SC-E7000

Battery

Shimano E8036 630Wh / Shimano E8035 504Wh for XS only
*504Wh Version RRP $7,799

Derailleur (R)

Shimano XT RDM8100 Shadow+ 12

Rotors

Shimano RT64 / Shimano RTEM600
203 mm

Shifter Front

Shimano SL -MT500-IL

Shifter Rear

Shimano DEORE M6100 12

Brake Front

Shimano SLX
4 piston

Brake Rear

Shimano SLX
4 piston

Chainwheel

Shimano CRE80-12-B
34 teeth Shimano FCEM600

Chain

KMC e12T EPT

Crank

Shimano FCEM600
165 mm for all sizes

Hub Front

Shimano SLX
110x15mm width front hub 32 spoke holes Centerlock

Hub Rear

Shimano SLX
148x12mm width rear hub, 36 spoke holes Centerlock

Rim

MERIDA EXPERT TR
29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)

Freewheel

Shimano M6100
10-51 teeth 12 speed

Tyre Front

Maxxis Assegai
29x2.5 " fold TR EXO+ 3C MaxxGrip

Tyre Rear

Maxxis DHR II
27.5x2.6 " fold 3C EXO+ TR

Spokes

Black stainless

Handlebar Stem

MERIDA EXPERT eTRII
material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 40 mm all sizes

Handlebar

MERIDA EXPERT eTR
780mm width 20mm rise

Headset

MERIDA-8152

Seat Post

MERIDA EXPERT TR

30.9mm diameter 0mm setback XS: 100mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost

Saddle

MERIDA EXPERT CC

V-mount incl. MERIDA minitool

Fender

C093-02F + C093-02R

Light Front

LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount

Light Rear

USB REAR Light CG-214RG

GEOMETRY

Frame Size	XS	S	M	L	XL
Tyre Sizes	29/27.5"	29/27.5"	29/27.5"	29/27.5"	29/27.5"
ST seat tube [mm]	405	415	430	450	470
TT top tube [mm]	563	584	605	626	647
CS chain stay length [mm]	439.5	439.5	439.5	439.5	439.5
HTA head tube angle [°]	65.5	65.5	65.5	65.5	65.5
STA seat tube angle [°]	75.5	75.5	75.5	75.5	75.5
BD bottom bracket drop [mm]	17.5	17.5	17.5	17.5	17.5
HT head tube [mm]	110	115	120	125	130
FL fork length [mm]	571	571	571	571	571
R reach [mm]	400	420	440	460	480
S stack [mm]	633	633	638	642	647
WB wheel base [mm]	1170	1190	1212	1234	1256
SH stand over height [mm]	737	736	733	739	753

Rider Height: Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend calling our nearest store to discuss your optimal size.
