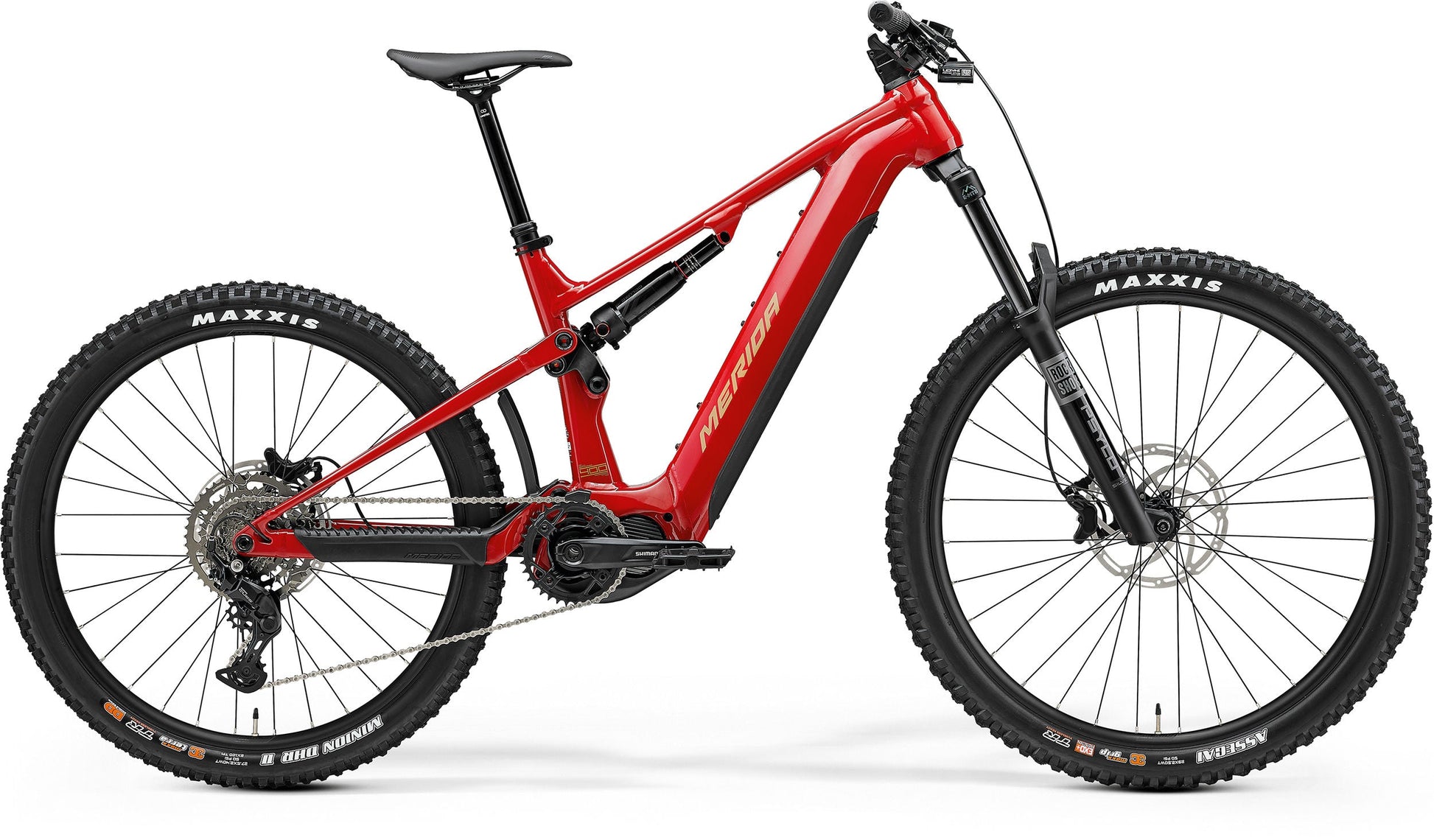

Merida eONE-SIXTY 400 E-MTB (Heritage Red)

Merida eONE-SIXTY 400 E-MTB (Heritage Red)

SKU: MEEB2502820

Find In Store

Mornington

Store Address

5d/1128 Nepean Hwy Service Rd
Mornington, VIC, 3931
Australia
+61 3 5975 2444
email [#1572] Created with Sketch. Email us
Rye

Store Address

2329 Point Nepean Road
Rye, VIC, 3941
Australia
+61 3 5935 1836
email [#1572] Created with Sketch. Email us
Dandenong Factory Outlet

Store Address

1/333 Frankston - Dandenong Rd
Dandenong South, VIC, 3175
Australia
+61 407 334 103
email [#1572] Created with Sketch. Email us
Warehouse

Address (Click & Collect available)

1/333 Frankston - Dandenong Rd
Dandenong South, VIC, 3175
Australia
+61 407 334 103
email [#1572] Created with Sketch. Email us

Stock levels are constantly changing. We recommend calling the store to confirm availability.

Bike Size
$6,499.00 AUD
$6,499.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Say hello to enduro adventures. Incredible value and proven handling make this the perfect machine to start your e-MTB journey. A powerful Shimano EP801 drive unit and 630 Wh battery will make light work of the hills, and sorted suspension will keep you in control.

The perfect first enduro e-MTB. The new eONE-SIXTY 400 features our latest fourth-generation aluminium frame, offering impressive performance at an incredible price. The user-removable 630 Wh battery gives you plenty of range and the powerful Shimano EP801 drive unit will help you conquer any climb. Thanks to the latest e-enduro geometry and a mix of bump-taming 29" front and agile 27.5" rear wheel, it's a fun and capable enduro machine, while proven suspension, Shimano brakes and drivetrain and RockShox suspension will keep you in control.

With the latest eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750 Wh battery and optional 360 Wh range extender. The only reason to stop will be because you have to. With our incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range, we've got handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents, while our proven FAST kinematic suspension will take care of anything the trail throws at it. This low-maintenance flexstay design offers 174 mm of rear wheel travel to go with 170 mm at the front, with size-tuned progression to maximise performance for all sizes of riders. You can run it with the latest coil shocks without any worries too. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focused full 29er setup without messing up the geometry, thanks to our flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel, while some models feature our ground-breaking 30-230 mm travel-adjustable dropper post. *except eONE-SIXTY 400

View full details

Specifications

FEATURES

  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel
  • RockShox Psylo Silver fork with 170 mm travel and Super Deluxe rear shock
  • Highly quality Shimano CUES 9-speed drivetrain
  • User-removable Shimano 630 Wh battery with powerful Shimano EP801 drive unit
  • Mixed wheel size as standard with option to full 29"
  • Reach-based AGILOMETER sizing system with long-travel dropper posts on all sizes

Brakes
Tektro Gemini M535
4 piston
Frame
eONE-SIXTY LITE IV
material: aluminium 160mm suspension travel 29x2.6" max. wheelsize 148x12mm axle standard intube 750 Wh
Frame Size
XShort, Short, Mid, Long, XLong
Fork
Rock Shock Psylo Silver R
160mm suspension travel Tapered 44mm fork offset 29x2.6" max wheelsize
Color
HERITAGE RED (RIVER CLAY)
Shock
Rock Shock Deluxe
Drive Unit
Shimano EP801
85Nm
Display
Shimano SC-EN500
Battery Lock
Abus key
Battery
Shimano EN806 630 Wh
removeable No Range Extender compatibility
Derailleur (R)
Shimano Cues U4000
GS
Rotors
Tektro TR203-45
203mm
Shifter Front
Shimano SL: MT500-L
Shifter Rear
Shimano Cues U4000-9
Brake Front
Tektro Gemini M535
4 piston
Brake Rear
Tektro Gemini M535
4 piston
Chainwheel
FSA 1x Steel Chainring
36 teeth
Chain
Shimano LG500
Crank
Shimano FC-EM600
165 mm for all sizes
Hub Front
Shimano TC500-B
15x100mm width front hub 32 spoke holes Centerlock
Hub Rear
Shimano TC500
12x148mm width rear hub 32 spoke holes Centerlock
Rim
MERIDA EXPERT TR II
110x15mm width front hub 148x12mm width rear hub 28mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) front 29" rear 27.5"
Freewheel
Shimano LG400-9
11-46 teeth 9 speed
Tyre Front
Maxxis Assegai
29x2.5 " fold TR EXO+ 3C MaxxGrip
Tyre Rear
Maxxis Minion DHR II
27.5x2.4 " fold 3C DD TR MaxxTerra
Spokes
Black stainless
Handlebar Stem
MERIDA EXPERT eTR II
material: aluminium 35mm diameter 0° stem angle Supernova mount 40 mm all sizes
Handlebar
MERIDA EXPERT eTR
780mm width XS,S 20RHB M,L,XL 30RHB
Headset
Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Seat Post
MERIDA EXPERT TR II
34.9mm diameter 0mm setback XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
Saddle
MERIDA COMP SL
28% recycled material V-mount
Light Front
Lezyne Hecto StVZO E350+ Reverse
reverse MERIDA Custom Mount
Light Rear
CG-404RG-BLK
Max. Weight
140 kg

GEOMETRY

Frame SizeXShortShortMidLongXLong
Tyre Sizes29/27.5"29/27.5"29/27.5"29/27.5"29/27.5"
ST seat tube [mm]400410425445465
TT top tube [mm]546567589610632
CS chain stay length [mm]446446446446446
HTA head tube angle [°]64.464.464.464.464.4
STA seat tube angle [°]78.5°78.5°78.4°78.4°78.3°
BD bottom bracket drop [mm]99999
HT head tube [mm]100105110115120
FL fork length [mm]581581581581581
R reach [mm]419439459479499
S stack [mm]624628633637642
WB wheel base [mm]11991221124412661288
SH stand over height [mm]763757751749744

Rider Height: Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend calling our nearest store to discuss your optimal size.
