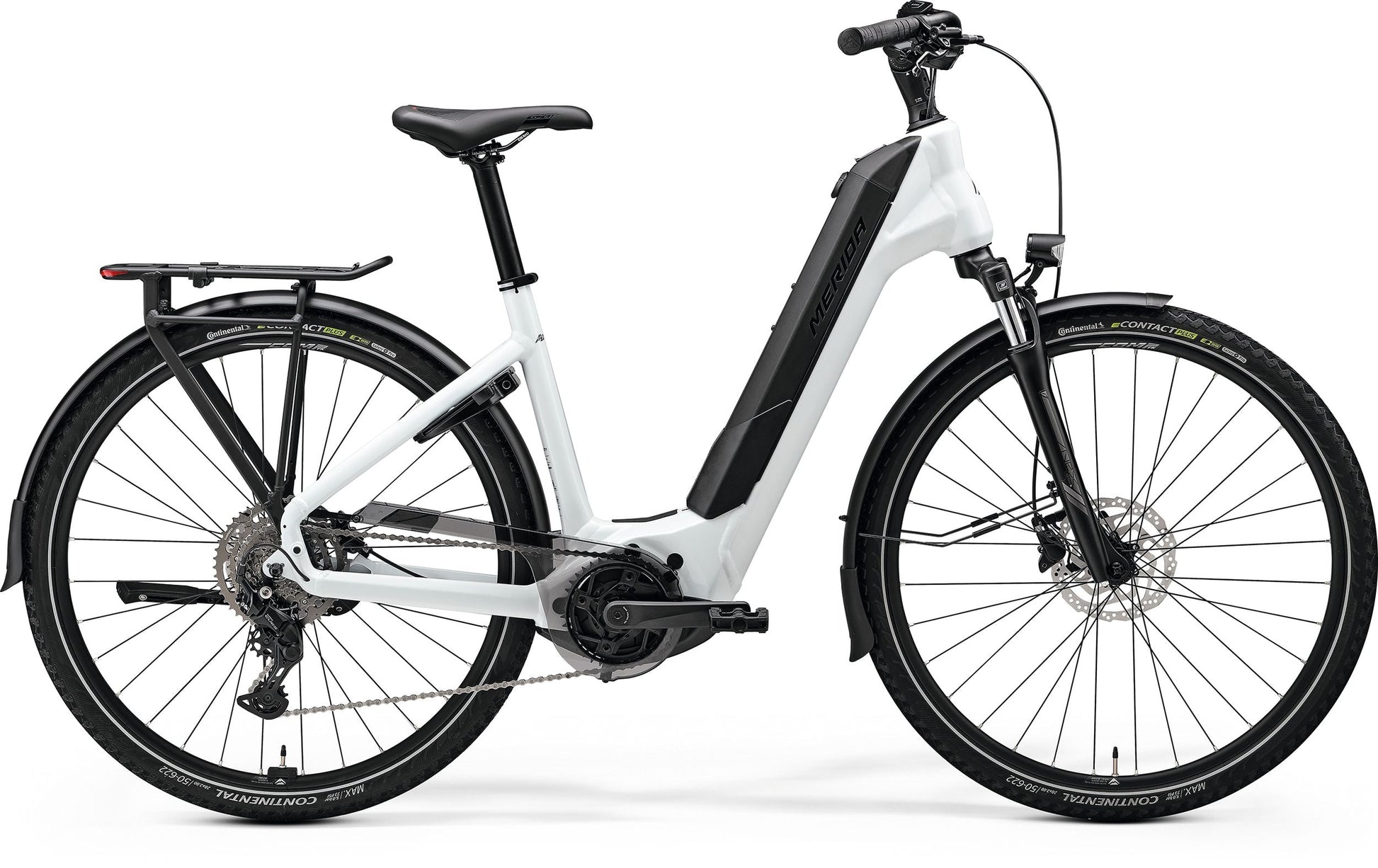

Specifications
FEATURES
- Extra low step-through ENERGY CRADLE frame design
- Internally mounted, user removable 620 Wh battery
- Powerful Bosch Performance Line motor with 75 Nm
- Wide-range 9-speed Shimano CUES U4000 drivetrain
- Fully equipped with guards, lights, lock, rack and kickstand
- Fast-rolling 700c wheels and comfy 50 mm tyres with reflective strip
Brakes
Shimano MT-200
2 piston
2 piston
Frame
eFLOAT CITY LITE
material: aluminium 700x50C (with fender) max. wheelsize 135x9mm axle standard internal
material: aluminium 700x50C (with fender) max. wheelsize 135x9mm axle standard internal
Frame Size
XS, S, M, L, XL
Fork
SR Suntour NEX E25
Coil 63mm suspension travel 700x52C max wheelsize
Coil 63mm suspension travel 700x52C max wheelsize
Color
PEARL WHITE (GUNMETAL GREY)
Drive Unit
Bosch Performance Line
Display
Bosch Purion 200
Battery Lock
Abus Key
Battery
Bosch PowerTube 625
625Wh
625Wh
Derailleur (R)
Shimano Cues U4000
GS
GS
Rotors
Shimano RT10
180 mm
180 mm
Shifter Rear
Shimano Cues U4000-9
Brake Front
Shimano MT-200
2 piston
2 piston
Brake Rear
Shimano MT-200
2 piston
2 piston
Chainwheel
FSA Direct Mount Steel Chainring W/ MegaTooth
38 teeth
38 teeth
Chain
Shimano LG500
Crank
FSA CK-220 Gen3 E-Bike Forgerd Crankset 165mm for all sizes
Hub Front
Shimano QC300
100x9mm width front hub 32 spoke holes Centerlock
100x9mm width front hub 32 spoke holes Centerlock
Hub Rear
Shimano QC300
135x9mm width rear hub 32 spoke holes Centerlock
135x9mm width rear hub 32 spoke holes Centerlock
Rim
MERIDA COMP TK
20mm inner width material: aluminium
20mm inner width material: aluminium
Freewheel
Shimano LG400-9
11-46 teeth 9 speed
11-46 teeth 9 speed
Tyre Front
Continental eContact Plus
622-50 wire reflecting line
622-50 wire reflecting line
Tyre Rear
Continental eContact Plus
622-50 wire reflecting line
622-50 wire reflecting line
Spokes
Black stainless
black nipples
black nipples
Handlebar Stem
MERIDA EXPERT
material: aluminium 31.8mm diameter adjustable 65 mm-XS/S/M, 90 mm-L/XL
material: aluminium 31.8mm diameter adjustable 65 mm-XS/S/M, 90 mm-L/XL
Handlebar
MERIDA EXPERT
material: aluminium 640mm width 35mm rise
material: aluminium 640mm width 35mm rise
Headset
MERIDA-8254
Seat Post
MERIDA EXPERT CC
material: aluminium 34.9mm diameter 0mm setback
material: aluminium 34.9mm diameter 0mm setback
Saddle
MERIDA EXPERT CT
V-mount
V-mount
Fender
Sunnywheel SW-FA311-60 (MSB)
Carrier
MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
Kickstand
Atranvelo ED-100-PC
Approx. Weight
29.3 kg
weighted at frame size M
weighted at frame size M
Light Front
Herrmans H-Black MR4 E
Light Rear
Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
GEOMETRY
| Frame Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 380 | 430 | 480 | 530 | 580 |
| TT top tube [mm] | 580 | 595 | 615 | 635 | 655 |
| CS chain stay length [mm] | 470 | 470 | 470 | 470 | 470 |
| HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| STA seat tube angle [°] | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| BD bottom bracket drop [mm] | 65 | 65 | 65 | 65 | 65 |
| HT head tube [mm] | 170 | 175 | 180 | 190 | 200 |
| FL fork length [mm] | 475 | 475 | 475 | 475 | 475 |
| R reach [mm] | 386 | 399 | 418 | 435 | 452 |
| S stack [mm] | 656 | 661 | 665 | 675 | 684 |
| WB wheel base [mm] | 1113 | 1128 | 1149 | 1169 | 1190 |
| Str Stack To Reach Ratio Pc | 1.58 | 1.53 | 1.49 | 1.45 | 1.51 |
Rider Height: Approx. rider height is a recommendation, and should be used as a guide only. To ensure a proper fit, we recommend calling our nearest store to discuss your optimal size.
