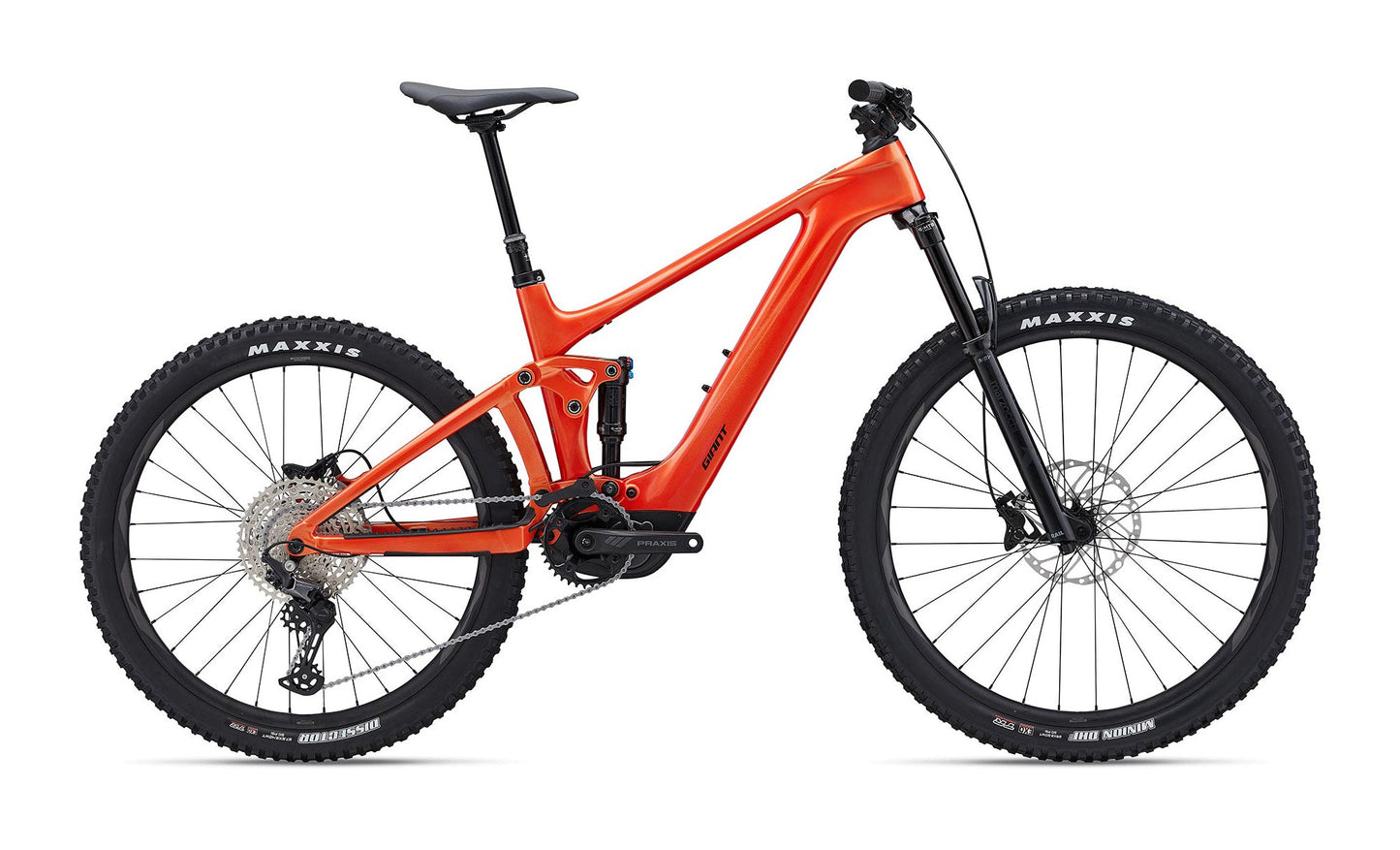

Giant Trance X Advanced E+ EL 3 25km/h (Helios Orange) E-MTB

Giant Trance X Advanced E+ EL 3 25km/h (Helios Orange) E-MTB

Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.

Lighter weight

EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

Advanced cockpit control

RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

More power

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

Bike Size

Low stock

$8,999.00 AUD
$8,999.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Click & Collect In-store Please note we do not ship bikes. Bike purchases must be click and collect or in-store only.
View full details

Specifications

Motor
SyncDrive Pro2, 85Nm, powered by Yamaha
Controller
RideControl Ergo 3, grip integrated
Display
RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery
EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
Charger
EnergyPak 4A smart charger compact
Sizes
S, M, L, XL
Colours
Helios Orange
Frame
Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension, flip chip, UDH hanger 12x148mm thru-axle
Fork
Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
Shock
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
Handlebar
Giant Contact SL 35 Trail, 35mm
Grips
Giant Tactal Pro-E, single lock-on
Stem
Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm
Seatpost
TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
Saddle
Giant Romero
Pedals
N/A
Shifters
Shimano Deore
Front Derailleur
MRP HD2 co-moulded chain guide
Rear Derailleur
Shimano Deore 12-speed, Shadow+
Brakes
Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R]
Brake Levers
Shimano Deore, I-spec EV
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimised
Crankset
Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mm
Bottom Bracket
N/A
Rims
Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
Hubs
Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
Spokes
Sapim, e-bike optimised
Tyres
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Extras
Tubeless kit (liquid, valves, levers)
